Features
• Wide Input Range from 48 to 60V; Typical value 48V
• 4.0-A Continuous Current Output, 4.5-A Maximum Current Limit
• High Efficiency at Heavy Loads,Up to 85%
• No Additional Heat Dissipation is required at The Transmitter
• 600-KHz Fixed Switching Frequency
• High Power Output and Long Distance：200W@6CM
• The Output Voltage can be Customized, 1.8V~60V
• The Coil canbe Changed for other applications
Applications
• Industrial and Consumer Electronics.
• High Protection Occasions.
• High Speed Rotating Occasion.
• Isolated Power Supply.
• Wireless Induction Heating

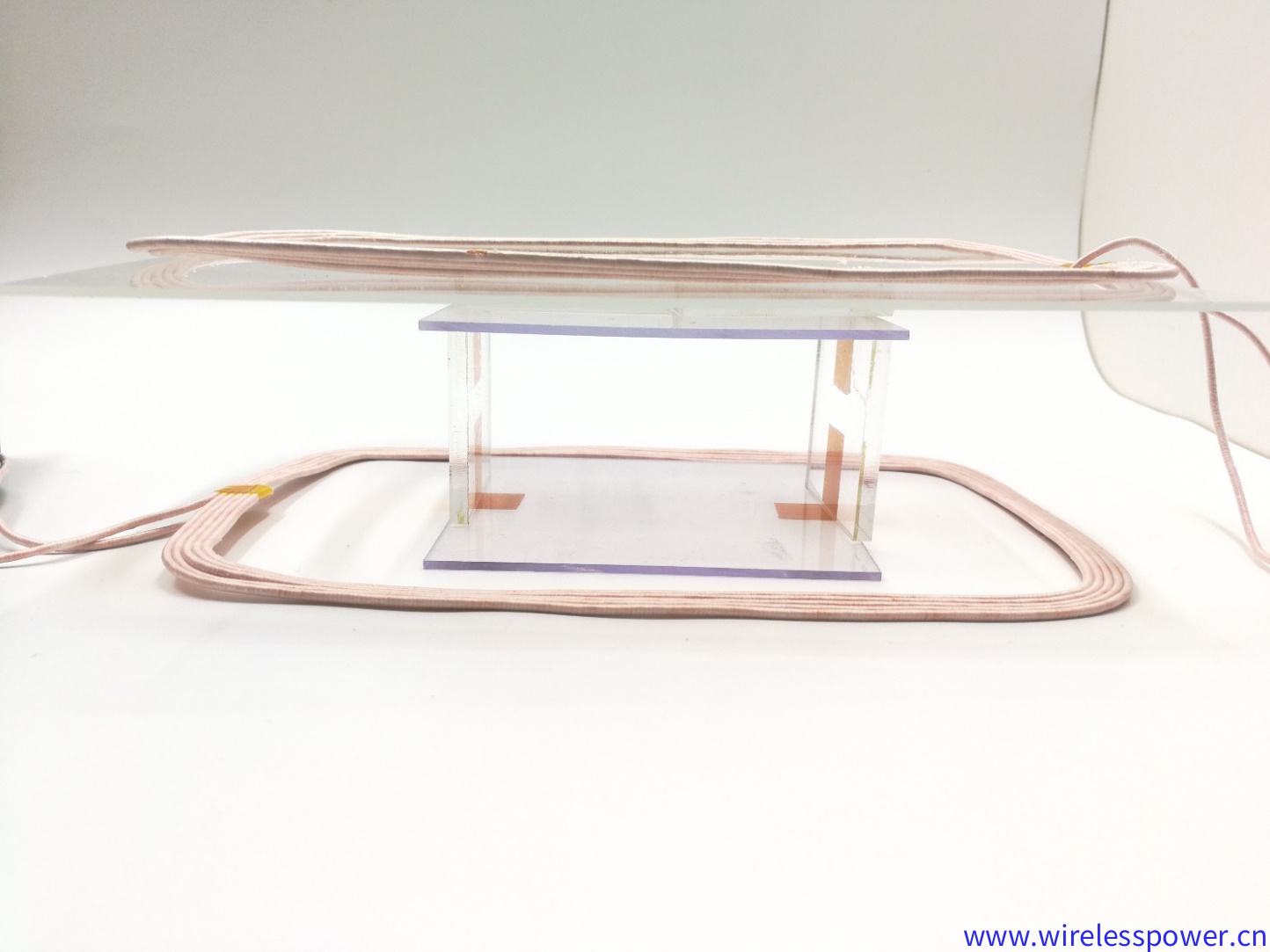

System assembly
The coils space relationship is placed facing up and down，and there are direction about the coil.
The distance between coils must be greater than 6cm

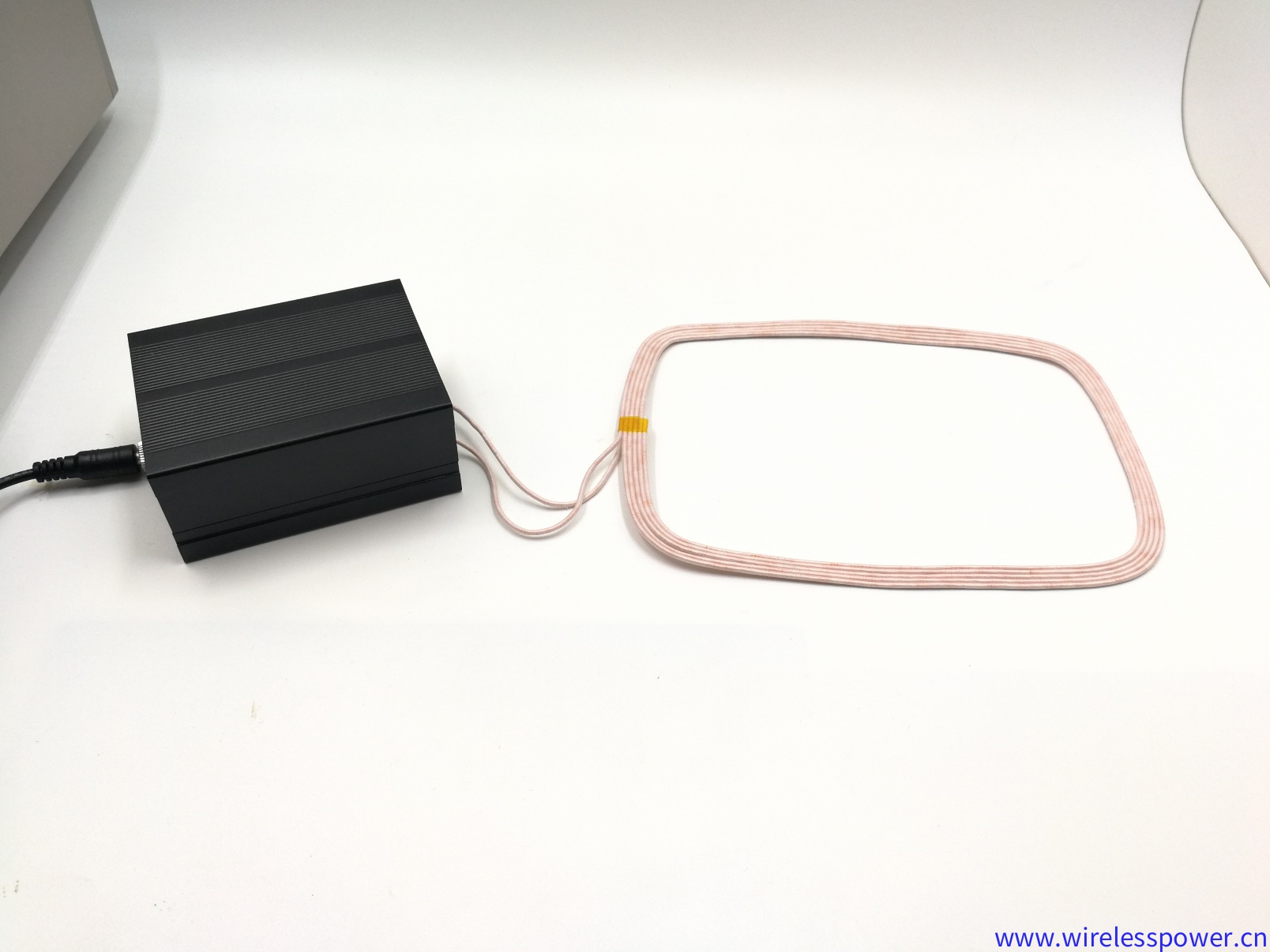

l The transmitter model：

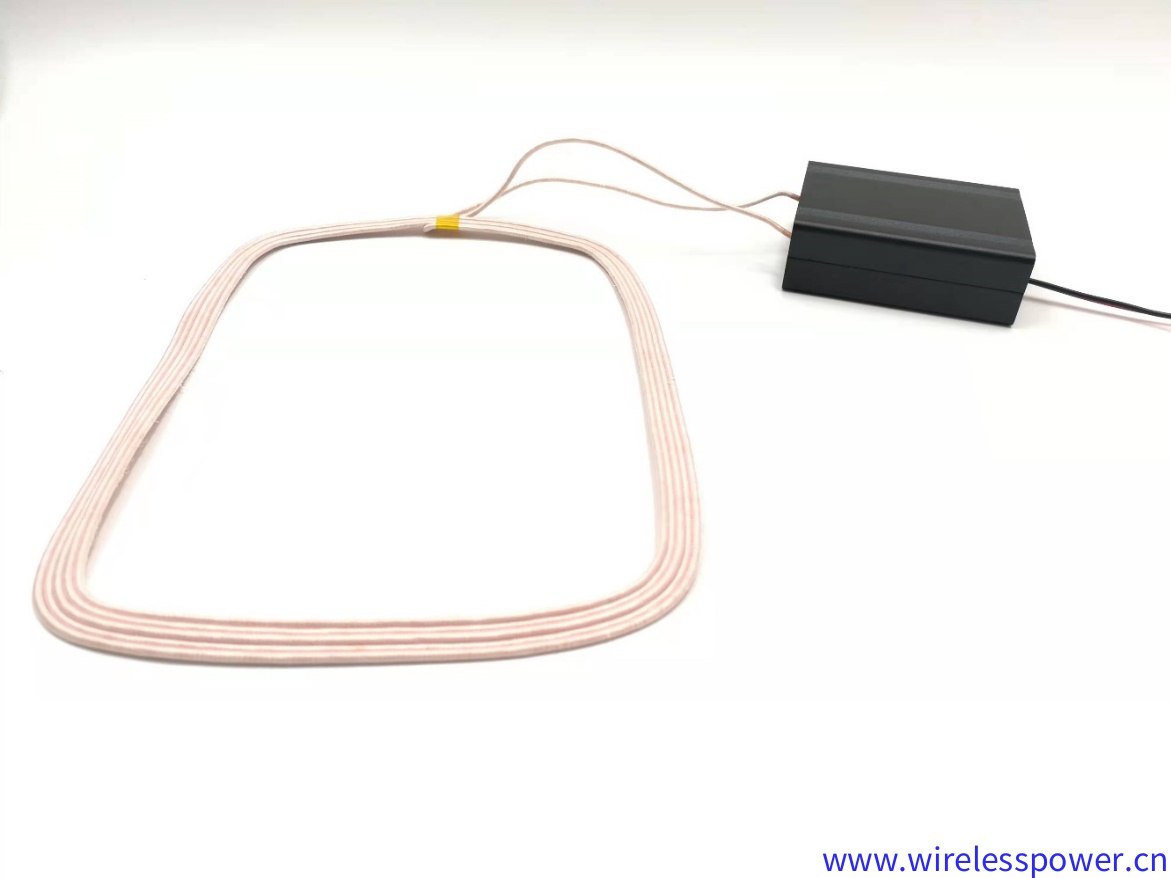

l The receiver model：
System Electrical Characteristics
Characteristics | Symbol | Typ Value | Unit |
Supply Voltage | Vs | 60.0 | V |
Maxinum input current | Iin | 5.0 | A |
Output Voltage | Vo | 57.5 | V |
Maxinum output current | Io | 3.5 | A |
Maximum output power | Po | 200.0 | W |
Standby power | Ps | 6.0 | W |
System efficiency | η | 80.0 | % |
Power supply distance | Ds | 60.0 | mm |
Coil offset | Do | 10.0 | mm |
Operating Temperature | To | -20~40 | °C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Attention
●The maximum operating voltage of transmitter is 60VDC.
●The power capacity is greater than 300VA.
●When using this product, the distance between the two coils should not be less than 60mm, otherwise there has the possibility of damage to the receiver.
●When the receiving end works for a long time with high current,guarantee it has a good heat dissipation. ●There should be no large metal next to the two coils in using.
●The coil has a difference in direction，If the best effect is not achieved, you can try to reverse the direction of coil.
●Do not place electronic products and other products sensitive to electromagnetic fields inside the coil.
